Geographic/location targeting

Targeting is an optional add-on to your AdButler subscription. For more information on adding add-ons, read How to change your subscription.

Targets let you show different ads in the same zone for different users or pages in the publisher's site. With geographic or location targeting ("geotargeting"), you can serve the assigned campaign only for viewers in certain locations based on their computer or device's IP address. You can also do the opposite and exclude viewers in certain locations from being served an ad. Depending on their region, you may be able to target viewers down to the city level.

This guide will show you how to use geotargeting. For other forms of targeting, read Targeting overview. To find out how to set schedules and target dates, days, or periods, read Pacing & Schedule.

You will learn:

  1. How to create geographic targets in the Targets section.
  2. How to create geographic targets in the assignment page.
  3. How to assign an existing geographic target.

Creating a geographic target in the Targets section

  1. Click Targets on the left navigation menu.
  2. Click Manage Geographic Targets. The table of geographic targets will appear.
  3. Click Add New. The New Target settings page will appear.

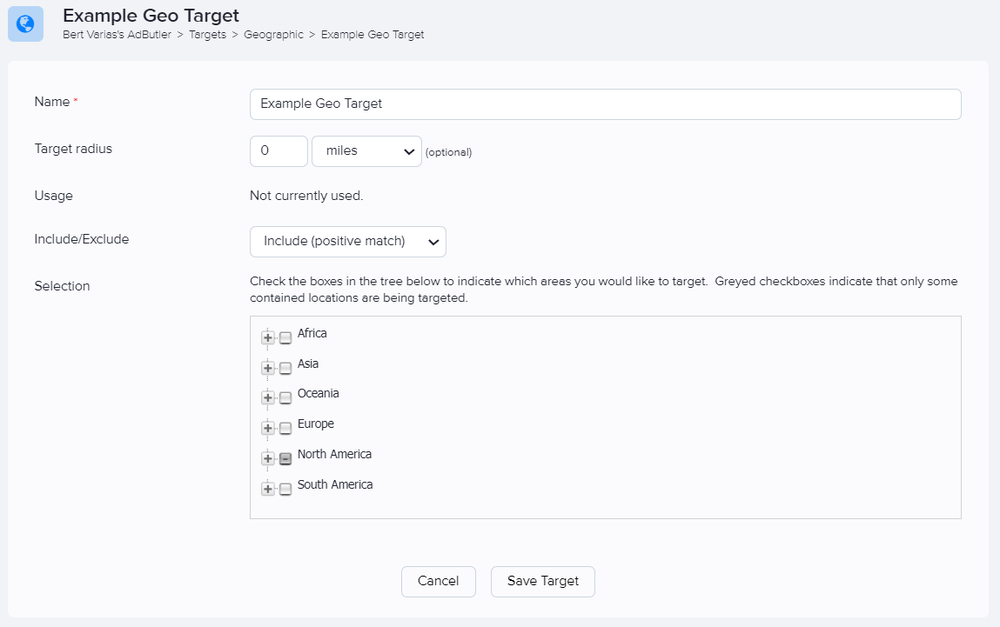

Creating a new geographic target in the Targets section

  1. Give the target a name.
  2. Enter a target radius if desired. This takes effect only when you select at least one city in the next field. The radius expands the coverage to a circle that encompasses nearby cities, with the targeted city at the center of the circle. If you select multiple cities, the radius will apply to each of those cities.
  3. Select whether the targeted location will be included or excluded from being served.
  4. Select the locations you would like to target by clicking the check box beside each location. Click the plus sign beside a location to select only one or more specific sub-locations within it.

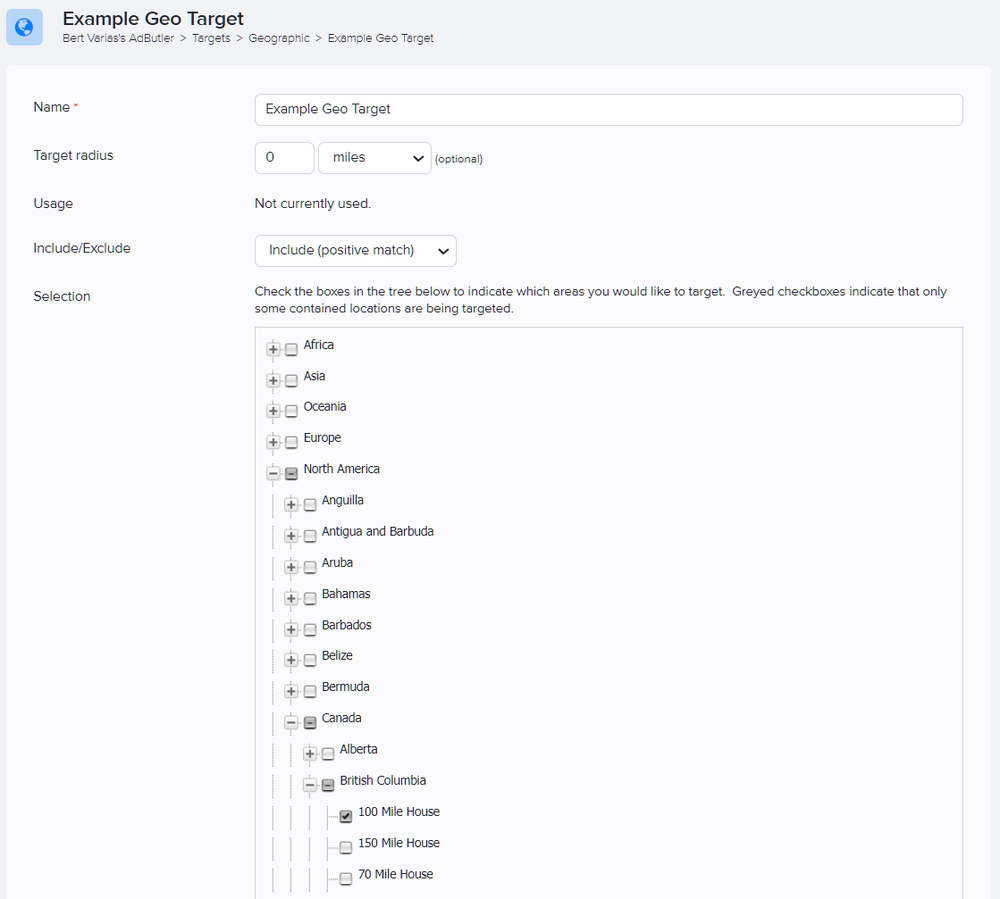

Selecting locations in the Targets section for geographic targeting

  1. Click Save Target. The target you created will appear in the table of geographic targets.

Creating a geographic target in the assignment page

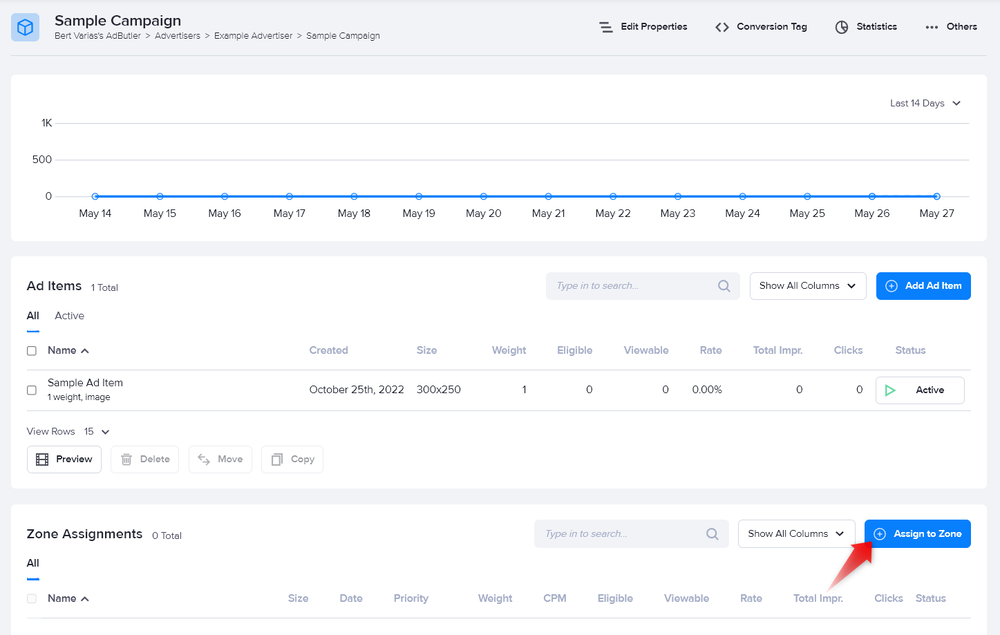

Assigning a campaign to a zone in AdButler

  1. Go to the relevant campaign's dashboard (Advertisers > Your Advertiser > Your Campaign).
  2. Click Assign to Zone on the top right of the Zone Assignments table. A list of eligible zones will appear.
  3. Select a zone to which the campaign will be assigned. The Assignment Details page will appear.
  4. Select a serve method. The rest of the settings will appear.
  5. Set the initial settings as needed, then scroll down to the bottom of the page. Click Targeting to expand its settings.

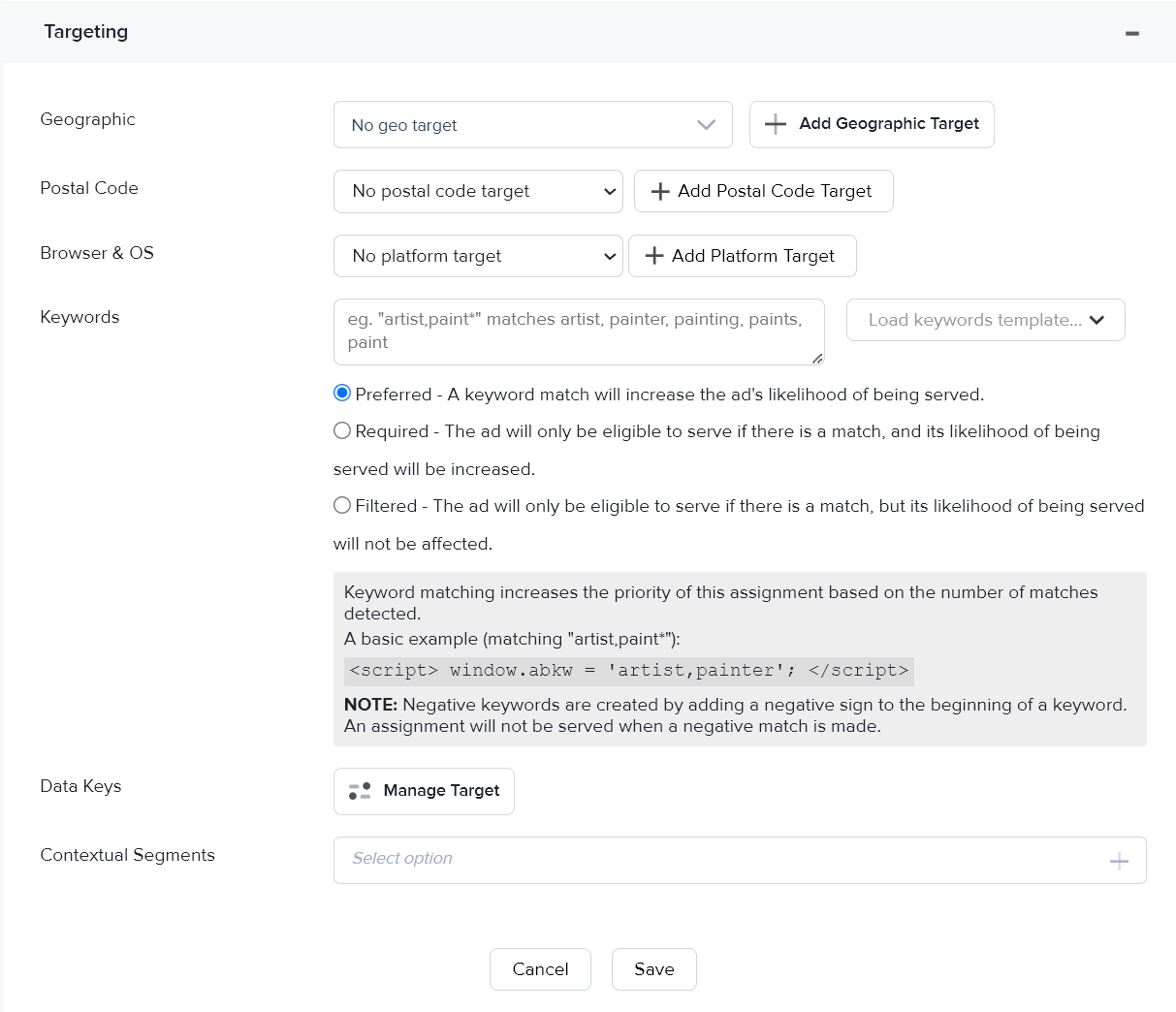

The Targeting section in a campaign assignment

  1. Click +Add Geographic Target to the right of the Geographic dropdown menu. The New Geographic Target window will appear.

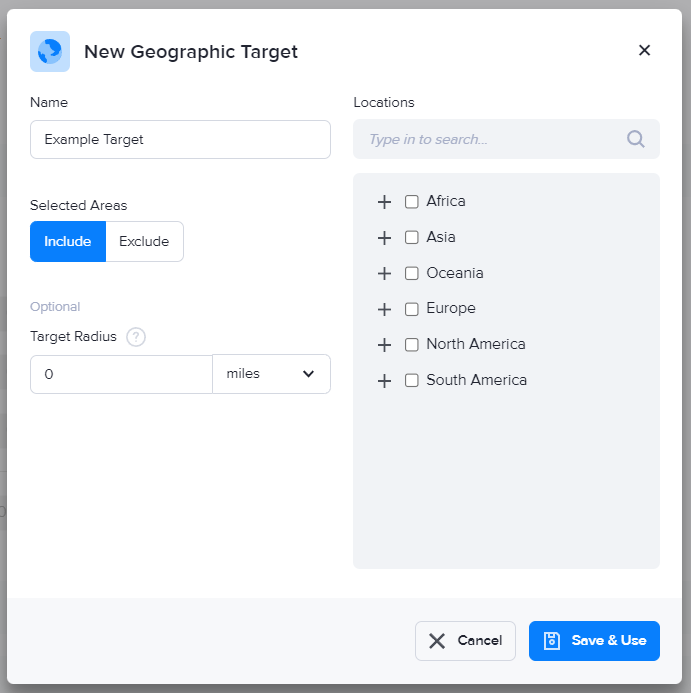

The New Geographic Target window in the assignment page

  1. Give the target a name.
  2. Select whether the targeted location will be included or excluded from being served.
  3. Select the locations you would like to target by clicking the check box beside each location. Click the plus sign beside a location to select only one or more specific sub-locations within it.

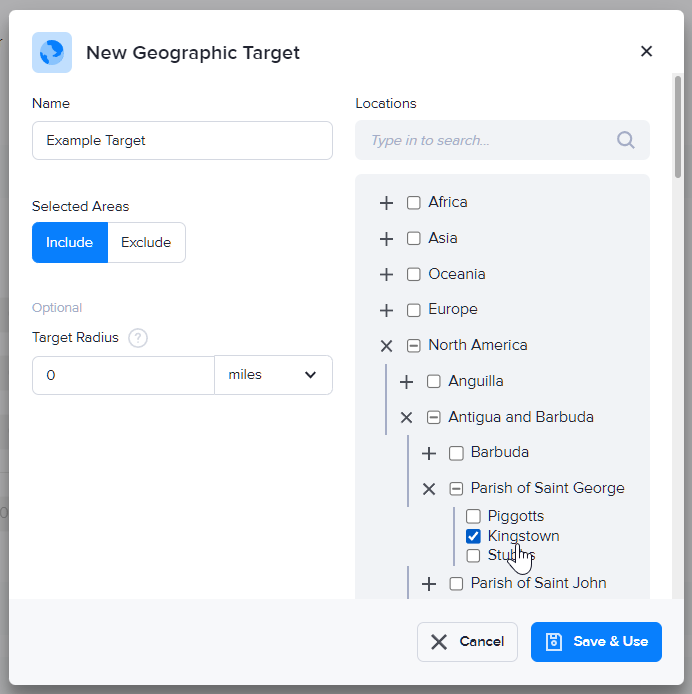

Selecting locations in the campaign assignment page for geographic targeting

  1. Enter a target radius if desired. This takes effect only when you select at least one city in the next field. The radius expands the coverage to a circle that encompasses nearby cities, with the targeted city at the center of the circle. If you select multiple cities, the radius will apply to each of those cities.
  2. Click Save & Use.

Assigning a geographic target

  1. Go to the relevant campaign's dashboard (Advertisers > Your Advertiser > Your Campaign).
  2. Click Assign to Zone on the top right of the Zone Assignments table. A list of eligible zones will appear.
To edit the targeting options of an existing assignment, click on the name of the zone where the campaign is already assigned.
  1. Select a zone to which the campaign will be assigned. The Assignment Details page will appear.
  2. Select a serve method. The rest of the settings will appear.
  3. Set the initial asssignment settings as needed.
For new VAST ad items, click on the Scheduling tab to see the serve method and targeting settings.
  1. Scroll down to the bottom of the assignment settings then click Targeting to expand the targeting settings.

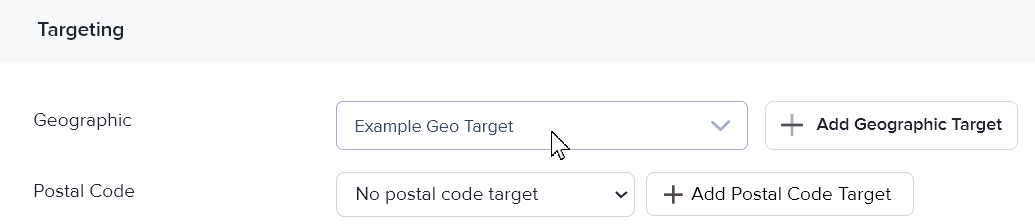

Configuring a campaign's targeting options in AdButler

  1. Select a geographic target from the Geographic dropdown menu.
  2. Continue configuring the assignment.
  3. Click Save at the bottom of the page.
